The 4CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on Free Space technology. This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with FS CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
Click to open expanded view
00:46

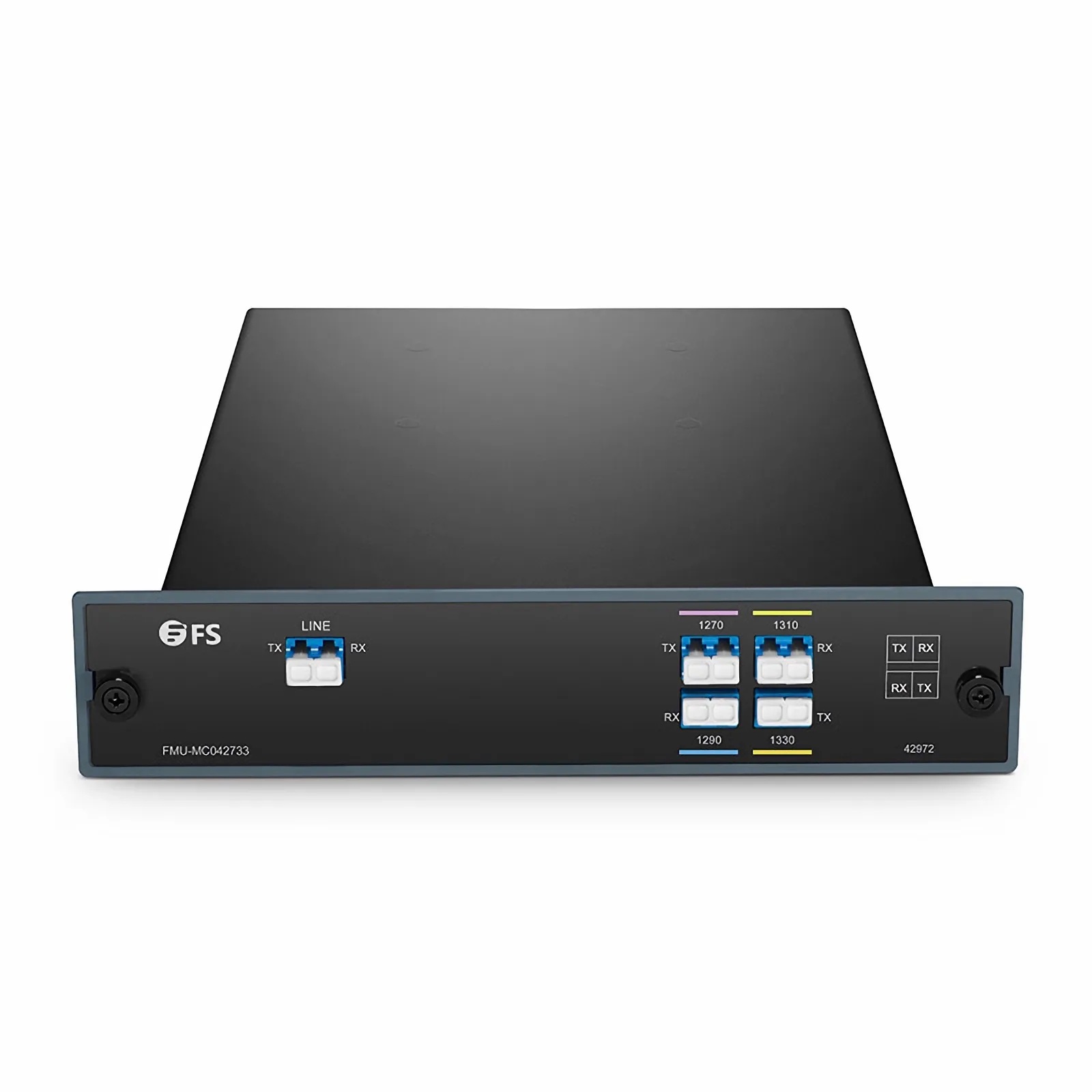

4 Channels CWDM Mux Demux, 1270-1330nm, 1.0dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module
#42972
#42972
US$179.00
FS P/N: FMU-MC042733FS P/N: FMU-MC042733
1.4K Solds
47 Reviews
11 Questions
10 in Transit, Get it by 29 Aug, 2024
See more Warehouse
Deliver to New York, 10010
Free Shipping via Fedex International Priority
3-Year Warranty
30-Day Returns
30-Day Exchange
4 Channels CWDM Mux Demux, 1270-1330nm, 1.0dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module
Specifications
Wavelength
4 Channels 1270-1330nm
Channel Spacing
20nm
Channel Passband
± 6.5nm
Insertion Loss
≤ 1.3dB, 1.0dB Typical
Passband Ripple
≤ 0.5dB
Technology
Free Space
Return Loss
≥ 45dB
Directivity
≥ 50dB
Polarization Dependent Loss
≤ 0.3dB
Polarization Mode Dispersion
≤ 0.1ps
Channel Isolation
Adjacent ≥ 30dB
Non-adjacent ≥ 40dB
Non-adjacent ≥ 40dB
Temperature
Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
Power Handling
≤ 500mW
Dimensions (HxWxD)
1.73"x8.35"x10.04" (44x212x255mm)
Note: Insertion Loss is specified with connectors and adapters.
.svg)
Connectivity Solutions
Features

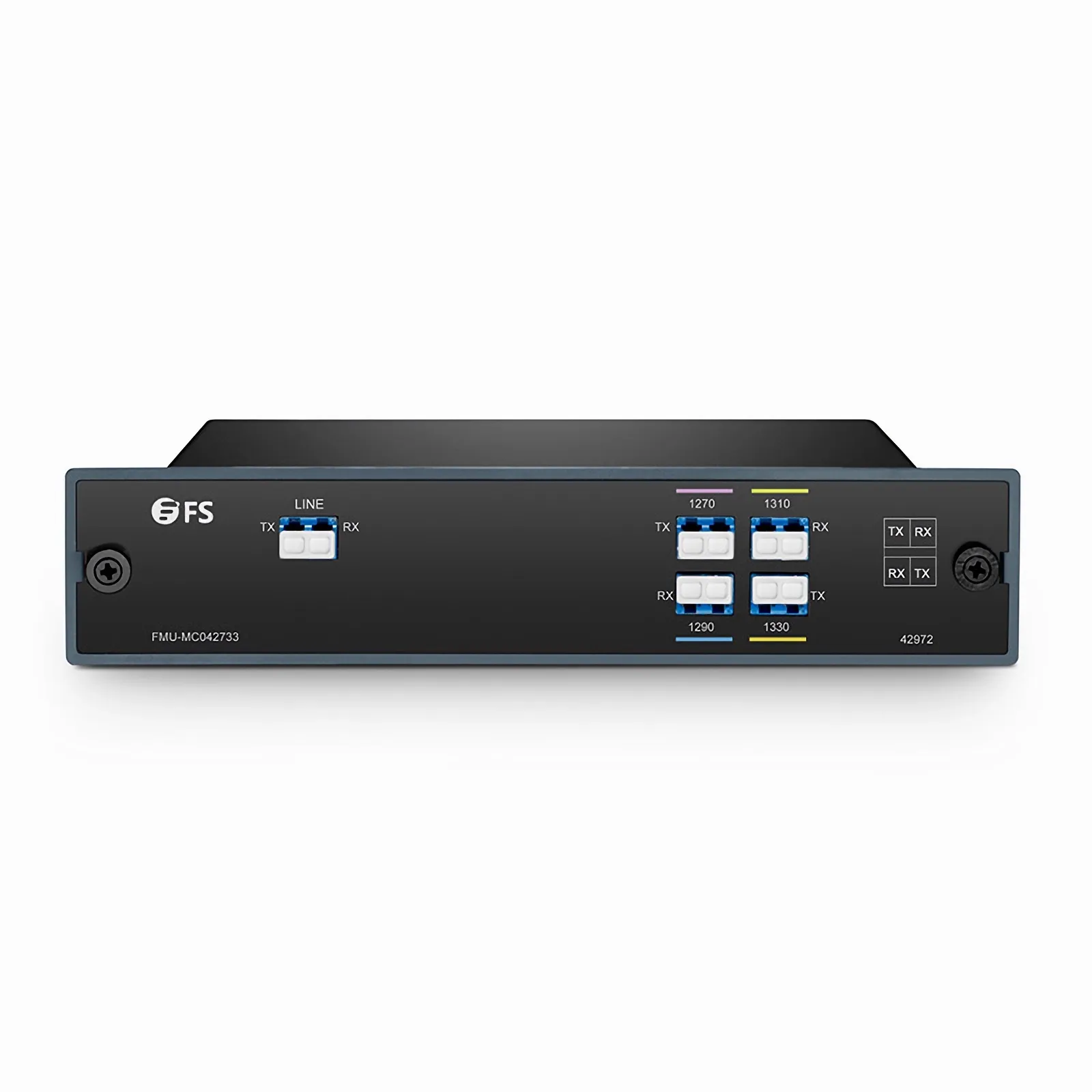

Diversified Ports for 4 Channels CWDM Mux Demux
The 1270nm-1330nm channel port for ITU 1G/10G/25G CWDM optical traffic, Line port for multiplexed signals transmission.
Provide Quick Connection and Deployment
The thoughtful structure design fits the user experience, guiding to use of the product conveniently.
Band & Color Labels
Fast and accurate installation.
TX/RX Label
Clearly show that how to link the patch cable.
Duplex Dust Cap
Easy insertion and removal.
Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade.
Ethernet
SAN
OTN
Video Services
SONET/SDH
Data Center Interconnect for CWDM Network
Mux Demux interconnect seamlessly with transponder, muxponder, and third-party WDM products, to form cost-effective high-capacity CWDM tailored solutions.
Data Center/DCI
ISP
Campus/Institute
Enterprise/Business
Mobility
Custom Solution Tailored to Your Needs
Increase Network Capacity
Up to 96 DWDM channels to be connected simultaneously over a dark fiber network
Network Design and Optimization
Includes a bill of materials (BOM) to match the future-proofing network requirements
Staging and Configuration Support
Encompasses building up and testing and configuring throughout the network
Number of Channel | 4 | 6 | 8 | 9 | 18 |
Wavelength | 1270-1330nm | 1271-1371nm | 1470-1610nm | 1270-1590nm | 1270-1610nm |
Insertion Loss | ≤ 1.3dB, 1.0dB Typical | ≤ 2.25dB, 2.1dB Typical | ≤ 2.4dB, 2.0dB Typical | ≤ 2.6dB, 2.4dB Typical | ≤ 5.5dB, 5.0dB Typical |
Channel Spacing | 20nm | 20nm | 20nm | 20nm | 20nm |
Channel Isolation | Adjacent ≥ 30dB Non-adjacent ≥ 40dB | Adjacent ≥ 30dB Non-adjacent ≥ 40dB | Adjacent ≥ 30dB Non-adjacent ≥ 40dB | Adjacent ≥ 30dB Non-adjacent ≥ 40dB | Adjacent ≥ 30dB Non-adjacent ≥ 40dB |
Return Loss | ≥ 45dB | ≥ 45dB | ≥ 45dB | ≥ 45dB | ≥ 45dB |
Special Service | — | — | Monitor, Expansion Port | — | Monitor Port |
Technology | Free Space | Thin Film Filter | Free Space | Free Space | Thin Film Filter |
Property | Passive | Passive | Passive | Passive | Passive |
Monitoring Type | — | — | OPD/OPM | — | OPD/OPM |
Power Handling | ≤ 500mW | ≤ 300mW | ≤ 500mW | ≤ 500mW | ≤ 500mW |

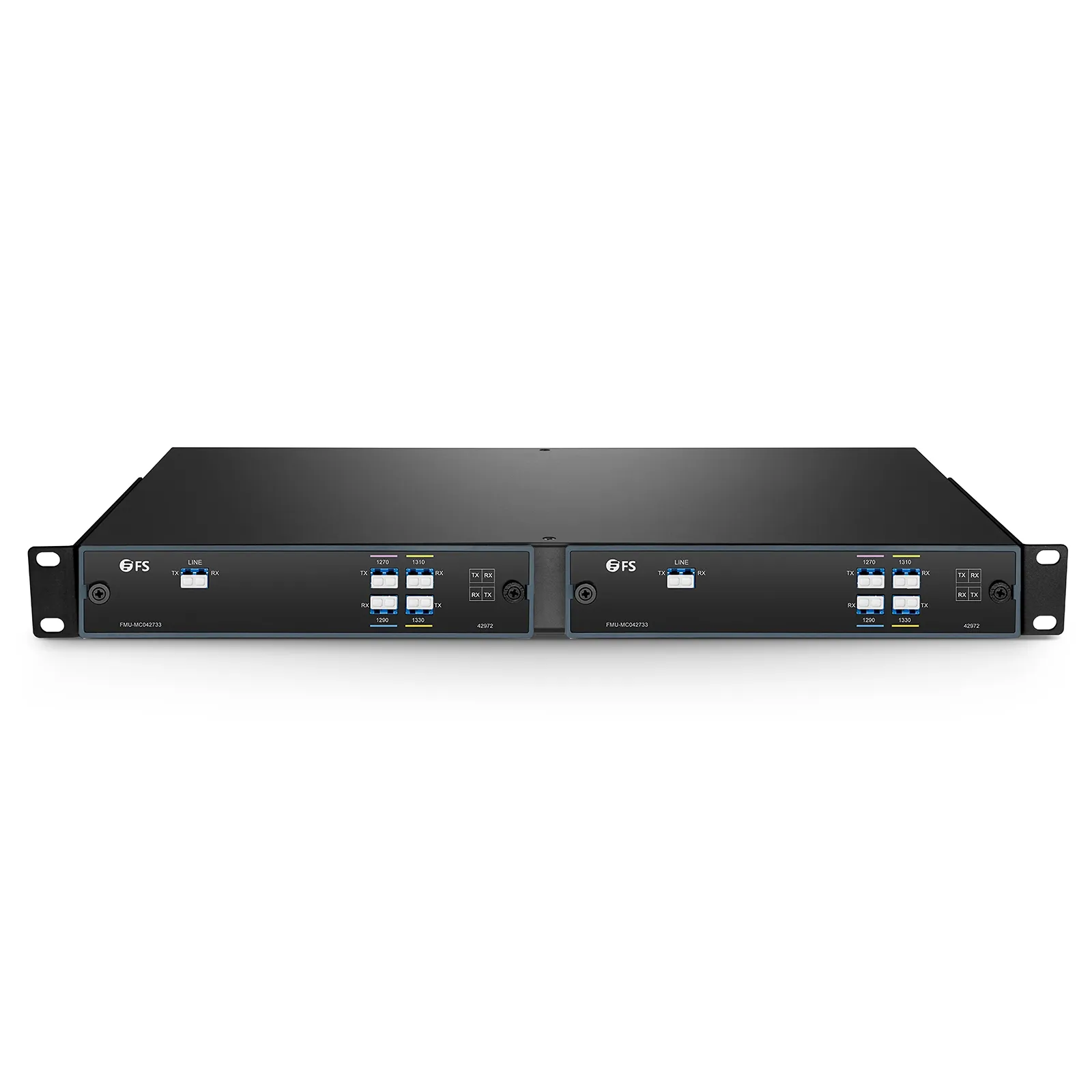

Housing | FMU Plug-in Module | ABS Pigtailed Module | FMU Plug-in Module | FMU Plug-in Module | 1U Rack Mount |
